BREECH PLUGS, PRIMER MODULES, TUNGSTEN BUSHINGS, Etc.

On this page, you will find details regarding breech plugs, primer modules, tungsten bushings and other miscellaneous supplies.  As we add to the inventory, we will update this page.



Warranty Information:



One Year Warranty on all Hankins manufactured breech plugs.

6 Month Warranty on all bushings when purchased assembled in a plug kit.

30 Day Warranty on all Hankins Tungsten Bushings purchased separately.  Bushings are guaranteed against cracking and burn-out.



6 Month Warranty void if bushing has been removed from plug.  No refunds or replacements will be honored without original receipt. Parts must be returned to Hankins Custom Rifles for replacement.



Any modifications made to breech plugs or bushings will automatically void the warranty and no returns will be accepted.



______________________________________________________________________________________________________________________



To place an order or ask questions: Send an email to hankinsrifles@twc.com or call 859-428-2336.



__________________________________________________________________________________________________________________

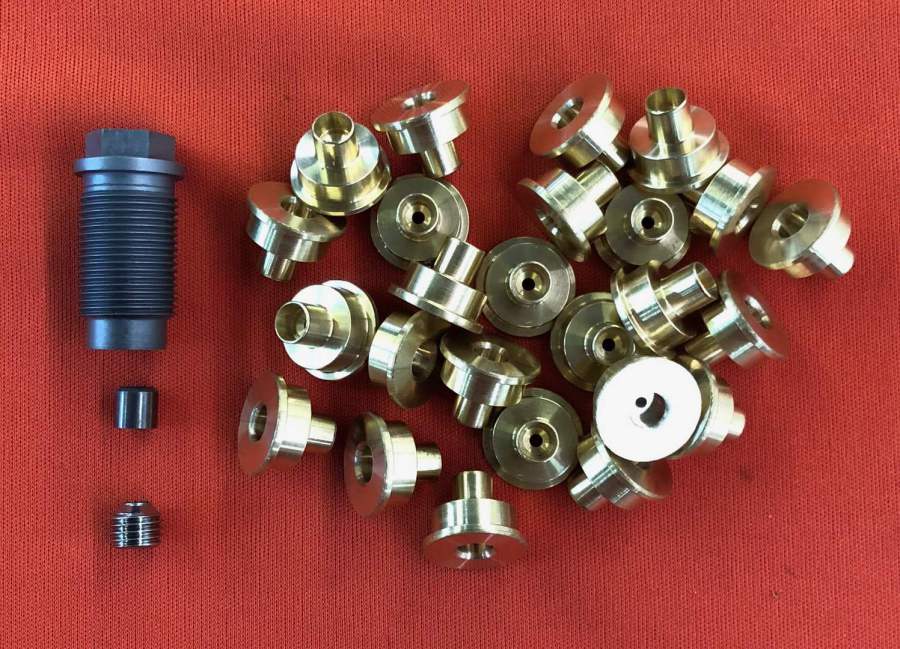

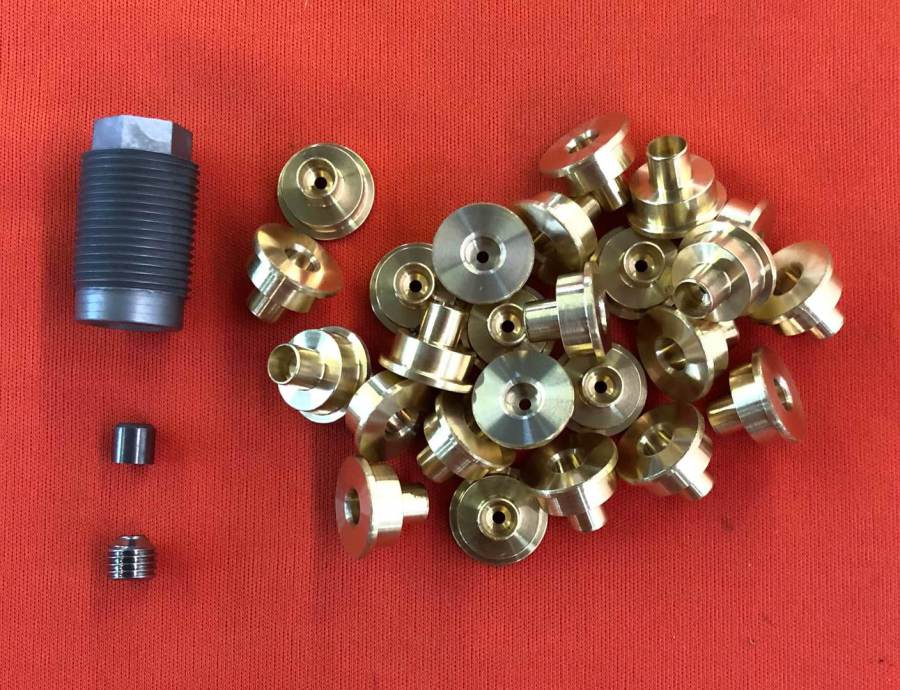

Hankins Ignition System (HIS) Complete Kit 5/8-18 TPI



Included in this kit is one breech plug, one .035 tungsten bushing, one lock screw, and 25 priming modules. Installation instructions included.



Part #: HIS

Price:  $225.00

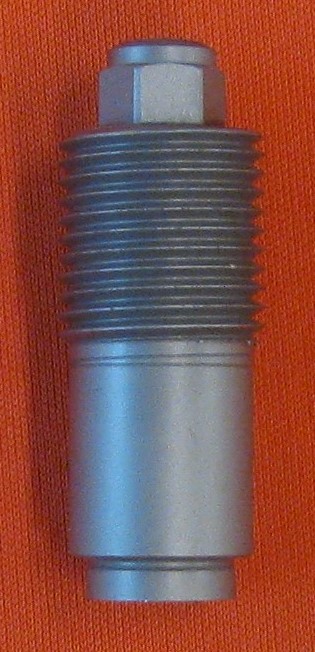

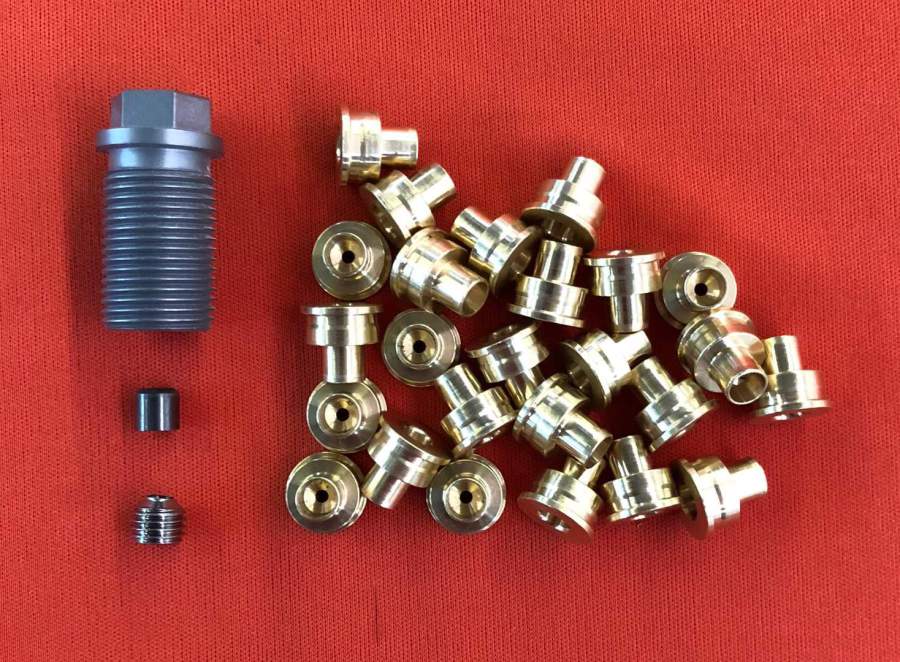

Hankins Brake Action Ignition System (HBAIS) Complete Kit 9/16-24 TPI



This system was designed for the brake action: Thompson Center Encore, CVA Apex, The CVA Scout V2, CVA Hunter model and H&R Handi Rifles are just a few that can use this plug.  The plug diameter of 9/16 and the thread pitch of 24 TPI makes this the best choice for small diameter barrels.



When designing this plug, I took into account the scope screw locations on the Encore and Apex barrels.  This plug will not come into contact with those holes and the ceiling shoulder of the plug sits back from the scope base hole.



Included in this kit is one breech plug, one .035 tungsten bushing, one lock screw,                                                                             and 25 priming modules.  Installation instructions included.



                                                                                                              Part #:  HBAIS

                                                                                                              Price:  $225.00

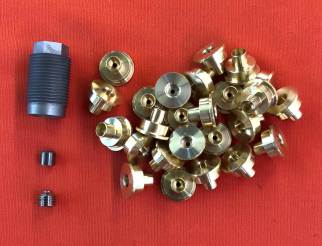

Hankins 11/16-20 Repair Plug System (HRPS)



This plug was designed to convert the 209 systems over to the LRMP system using my primer modules for a 100% leak free sealed ignition.  Many existing conversions use the 11/16-20 threads, therefore, you will need this plug if you wish to use your existing barrel.  This plug is also a total of .100 longer than the standard 11/16-209 conversion plug, therefore, you will need to re-machine your inner shoulder in the barrel to achieve proper headspace.



Included in this kit is one breech plug, one .035 tungsten bushing, one lock screw and 25 priming modules of your choice of size (Standard bolt face, Magnum bolt face, or 45-70 bolt face).  Installation instructions included.



                                                                                      Part #:  HRPS

                                                                                      Price:  $225.00

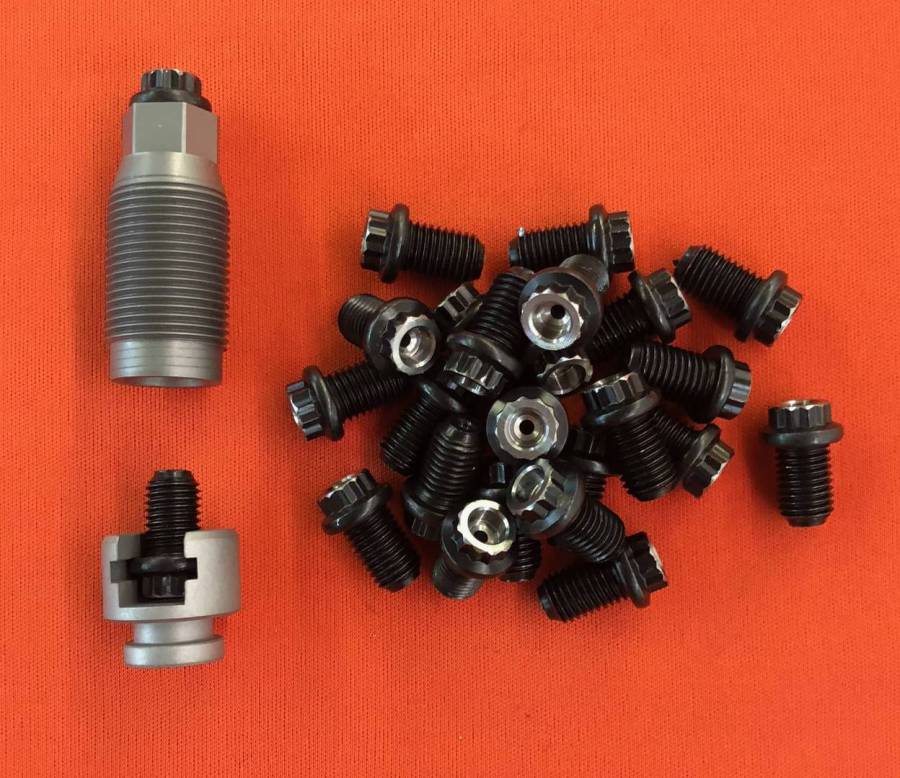

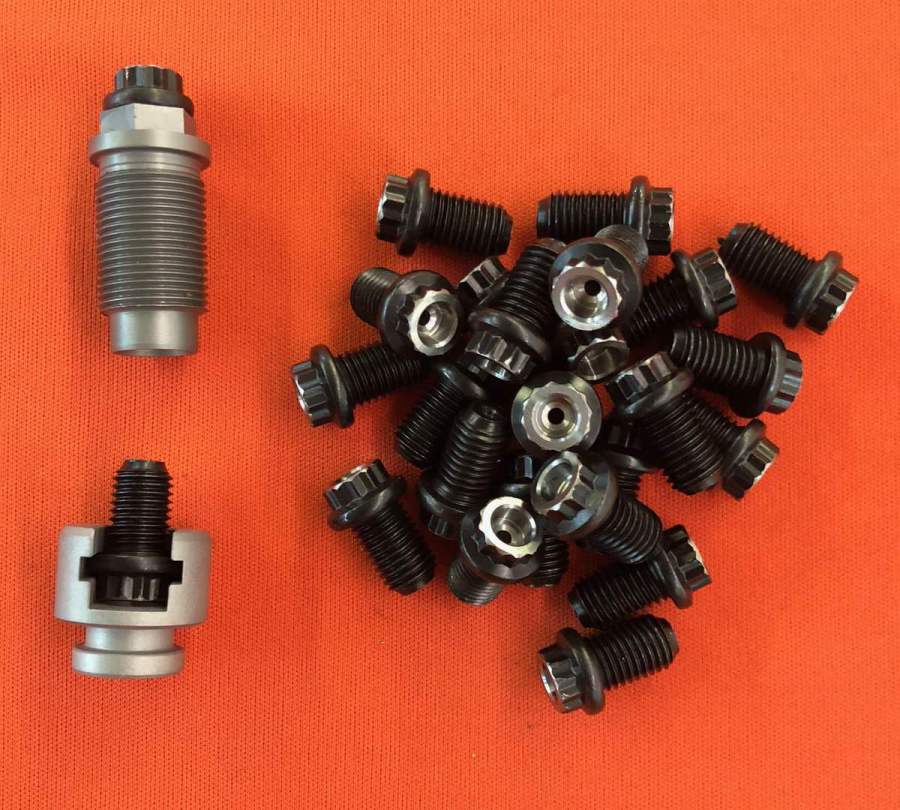

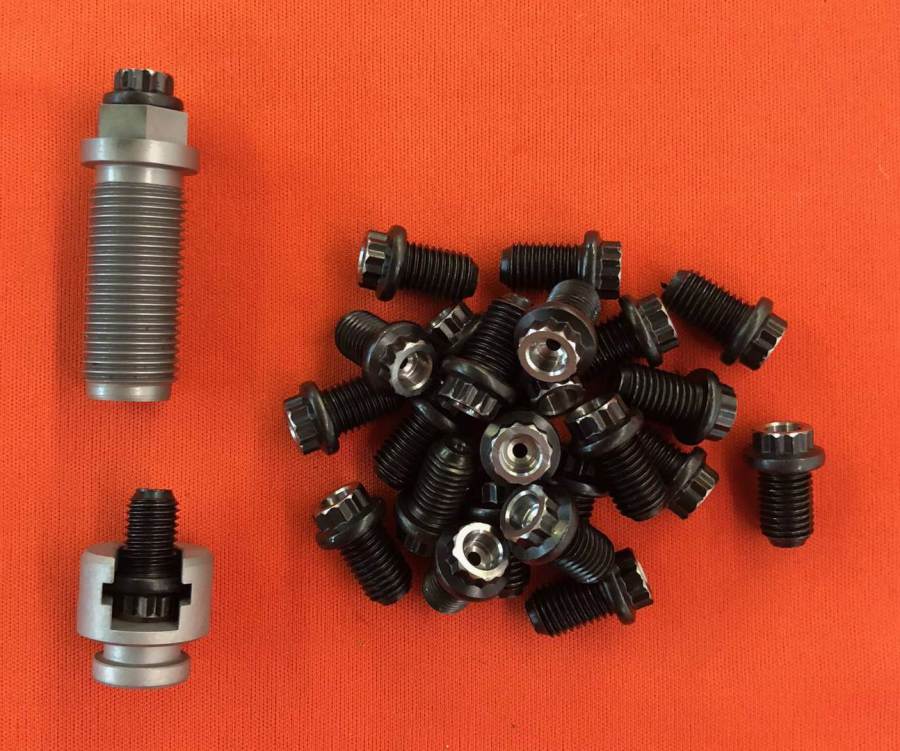

Hankins DIS

(Direct Ignition Plug System)



This plug is the Hankins original plug made to except the DIS modules.  This plug does not need a tungsten bushing or a locking set screw. This system comes complete with a plug, 25 priming modules and a DIS shell holder made form solid stainless steel to last a life time of use. These modules are made from grade 9 aircraft steel bolts and will last you a life time of use.If you have a HIS System, this is a direct replacement if you want to try the DIS system.



Part #: HDIS

Price: $155.00

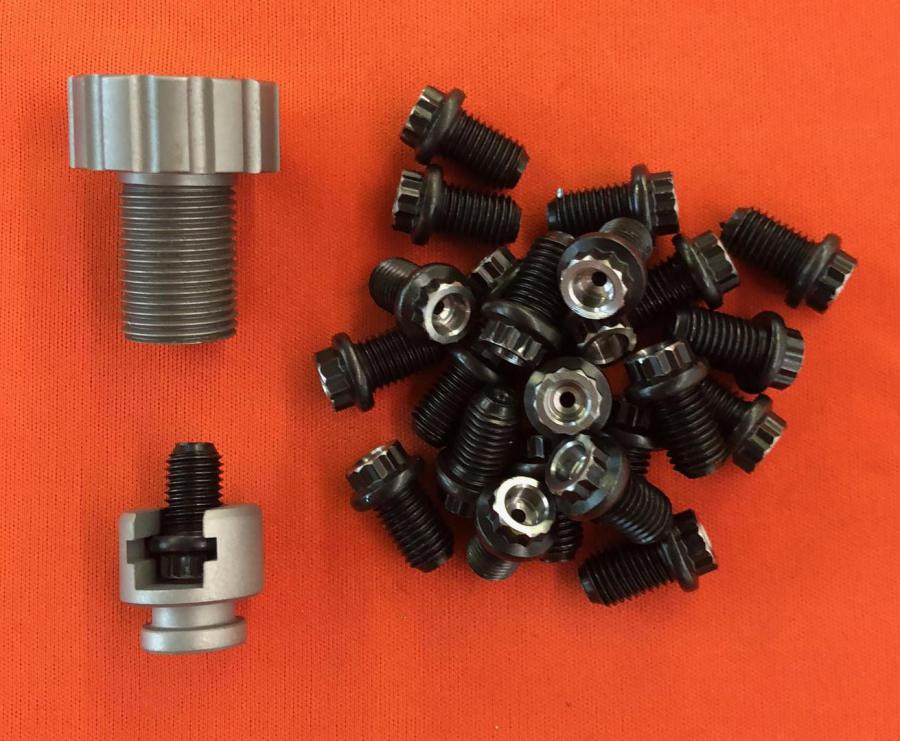

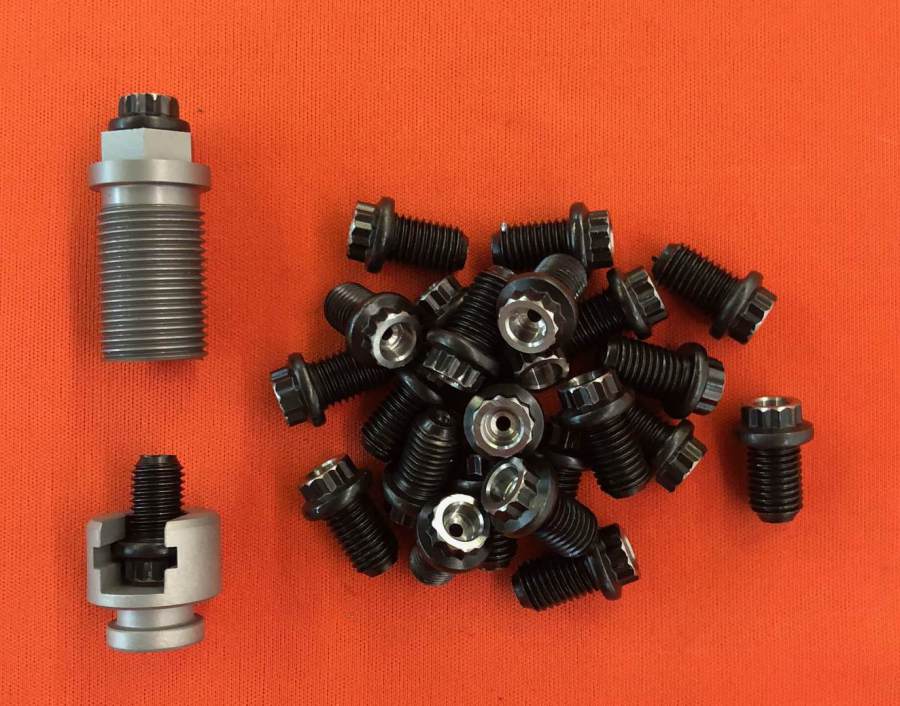

Hankins Break Action DIS

(Direct Ignition System)



This is the Hankins Break action plug kit and also works well in the pre-fit barrels for Remington and Savage. This system comes complete with a 9/16-24 plug and 25 priming modules, a stainless steel DIS shell holder is included in each kit that will last a life time of use. These modules are made form grade 9 aircraft steel bolts and will also last you a life time of use.  Rest assured this is the best choice for your DIS ignition system.



Part # HBADIS

Price: $155.00

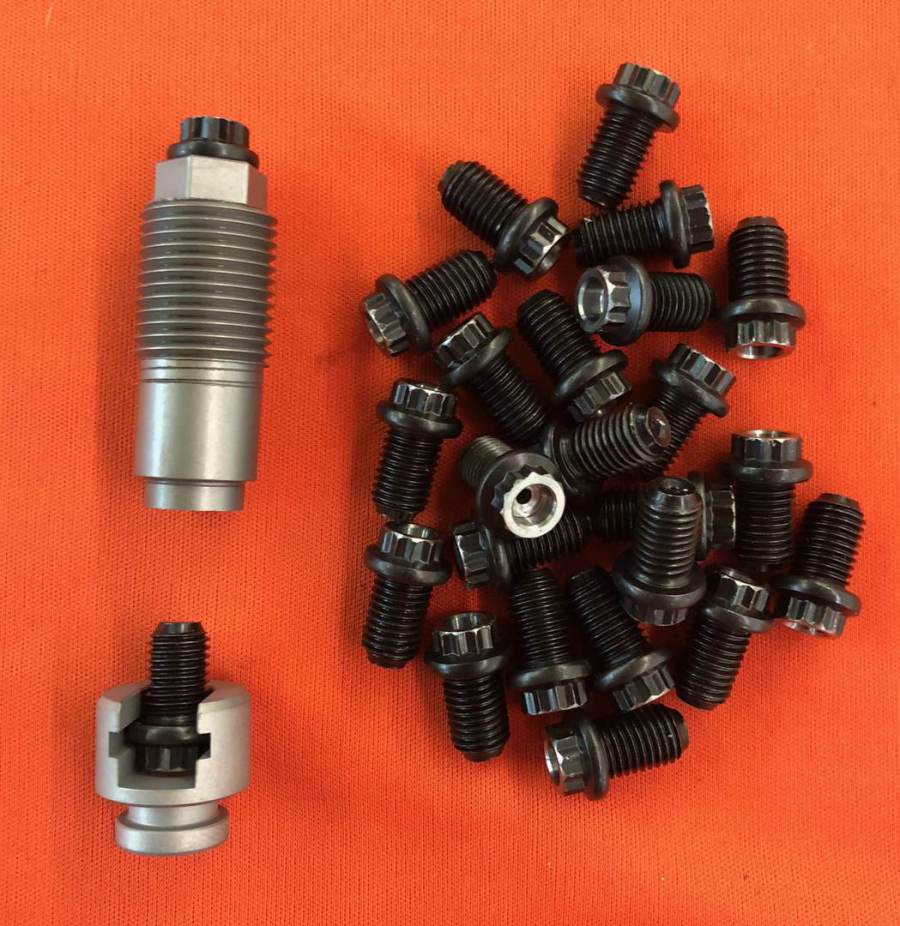

ASG Replacement Plug With The Hankins DIS Ignition System

(Direct Ignition System)



This is a direct replacement for the ASG plug so that you can run the DIS ignition system modules in your rifle that was built using the ASG Gen2 plug system.

This system comes complete with a 9/16-18 ASG plug, 25 DIS priming modules, and a stainless steel DIS shell holder to last a life time of use.



Part # ASGDIS

Price: $155.00



Hankins Encore DIS Repair Plug

(Direct Ignition System)



This plug was made to fix some of the Encore rifles that were converted to 209 primer systems. This plug is .100 longer than the Encore plug so that you have the option to re-machine your inner shoulder in your barrel to fix any erosion that might be there, or you can machine the head of this plug to achieve the proper head space with out machining the barrel.

This system comes complete with an 11/16-20 plug and 25 DIS priming modules, a stainless steel DIS shell holder is also included in the kit for a life time of use.



Part # HDISRP

Price $155.00



Hankins Savage DIS Replacement Plug

(Direct Ignition System)



 This is a replacement plug for all the rifles that used a Savage style breech plug. This plug is .100 longer than the origional Savage plug so some machining will be necessary to install. I made this plug longer so you couold fix the inner shoulder of the barrel if you had erosion problems. This system comes complete with the Savage 11/16-16 plug and 25 DIS primer modules.  Also included in this kit is a stainless steel shell holder to last a lifetime of use.



Part # HSDIS

Price $155.00



Hankins CVA Apex ML  DIS Replacement Plug

(Direct Ignition System)



This plug replaces the CVA Apex Muzzle loader breech plug. With this plug you can use the Large Rifle Magnum Primers to eliminate the mis-fire associated with the 209 shot gun primers. This plug comes complete with 25 DIS primer modules and a DIS shell holder that will last a lifetime of use.



Part # CVADIS

Cost $155.00

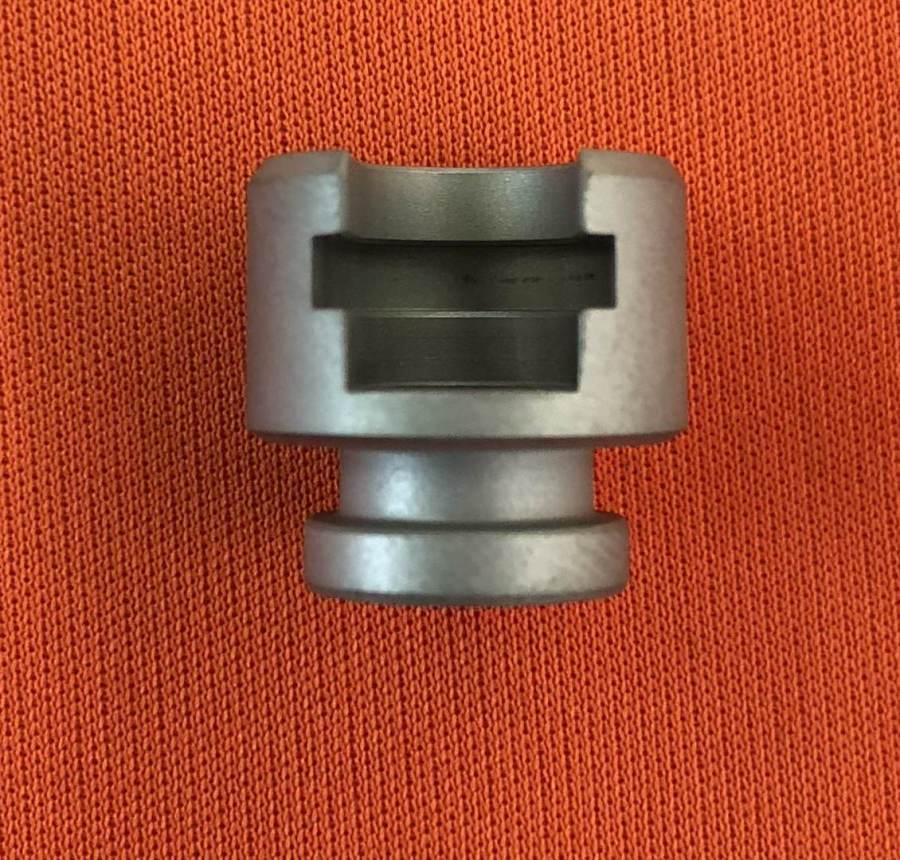

Hankins DIS Primer Module Shell Holder

(Direct Ignition System)



The is the DIS shell holder that you will need to prime your DIS modules. If you need an extra shell holder I have them available as a stand alone item. They are made from solid stainless steel and will last a lifetime of use. They will fit your standard reloading press and the RCBS hand held priming tool.



Part # DISSH

Price: $12.00

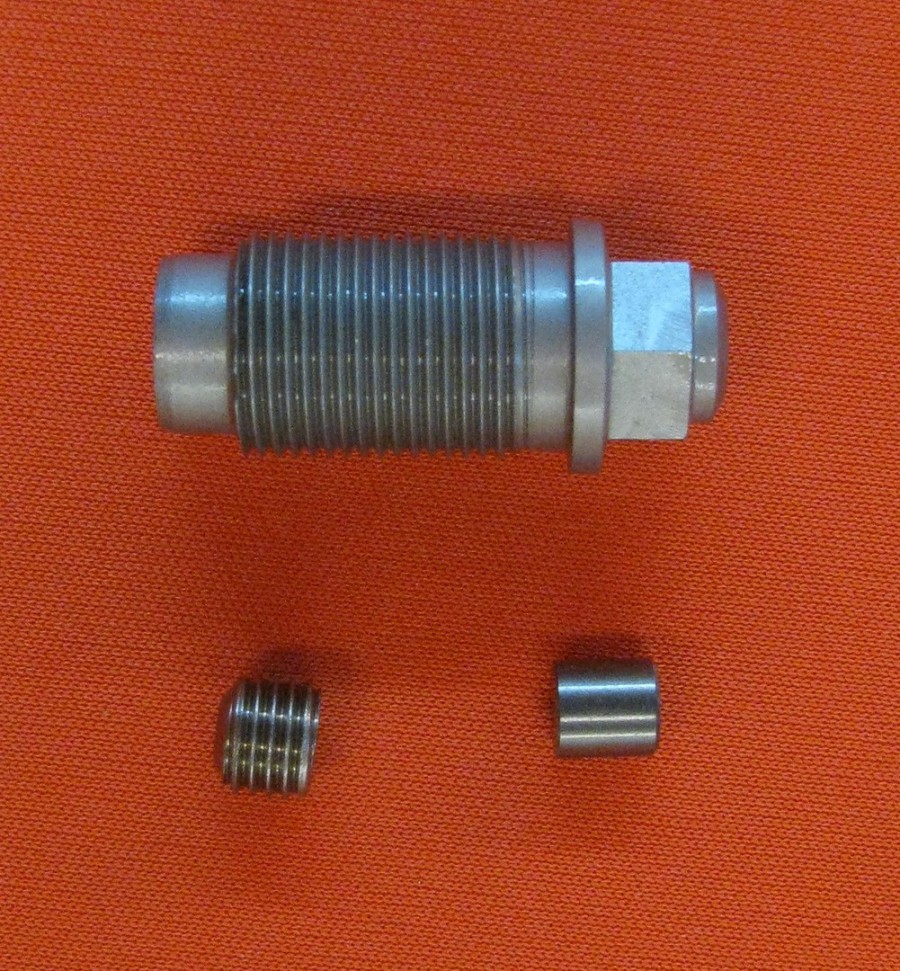

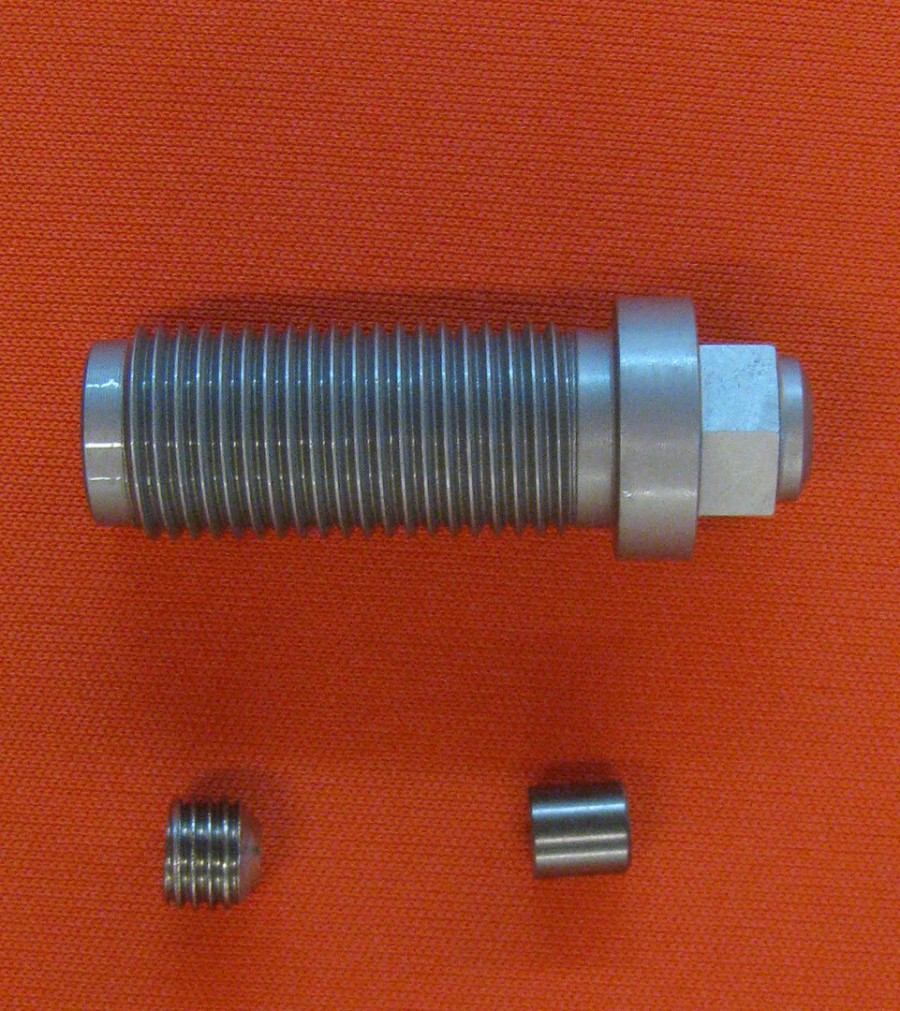

Hankins 209 Plug System (HIS-209) Complete Plug with Tungsten Bushing and Lock Screw



This plug was designed to be used with the 209 shotgun primer.  It will need to be installed and headspaced to fit your action and primer of choice.  It is a good option for brake action guns and can also be used in bolt action rifles as well.  The primer pocket is machined at .239 so that the installer can custom fit the primer pocket to the primer being used.



Included is one plug, one .035 tungsten bushing  and one lock screw.



Part #:  HIS209

Price Complete Plug:  $75.00

Price Plug Only with Lock Screw:  $45.00





Hankins 209 ASG Complete Replacement Plug



This plug was built as a direct replacement for the ASG 209 plug.  It has a thread pitch of 9/16-18 x 1.5 long and a .200 thick shoulder.



Included is one plug, one .035 tungsten bushing and one lock screw.



Part #:  H209ASG

Price Complete Plug:  $75.00

Price Plug Only with Lock Screw:  $45.00

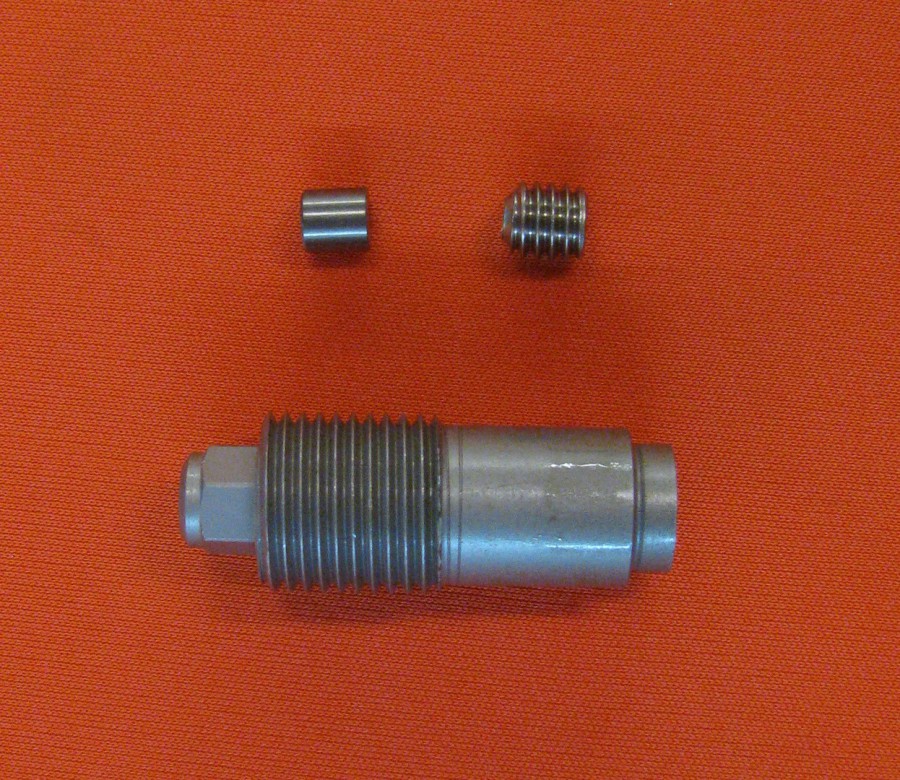

Savage Replacement Breech Plug with Tungsten Bushing

and Lock Ring



This plug is a direct replacing for the Savage ML plug.  The thread pitch is 11/16-16.



Included is one plug, one .035 tungsten bushing and one lock screw.



Part #: SRBPTB

Price Complete Plug:  $75.00

Price Plug Only with Lock Scres:  $45.00







Standard Savage Replacement Plug for use with vent liners



This is a direct replacement for the original Savage ML 11/16-16 TPI plug.



                               Part #:  SSRP

                               Price:  $40.00

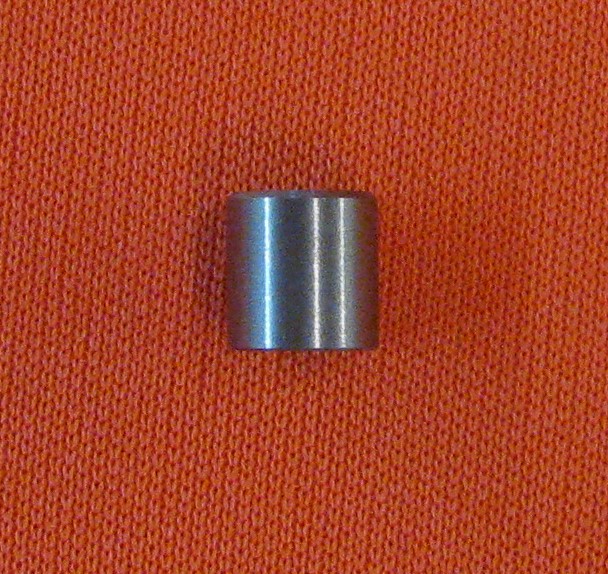

Hankins Tungsten Bushings .250 DIA. X .250 length



Tungsten bushings come with a 30 day money back guarantee against breakage or burn-out.



Available in one size only:    .035



Part #: HTB35,

Price:  $30.00

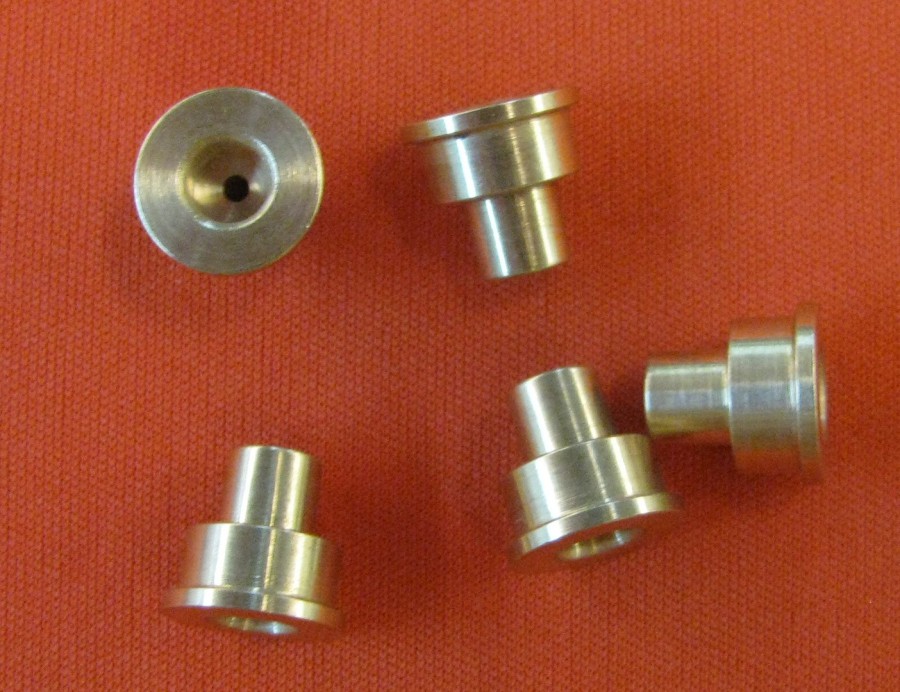

Hankins Ignition Modules



Brass priming modules custom CNC machined in-house on state of the art equipment.



These modules are available in three different bolt head configurations:  Standard Bolt Face, Magnum Bolt Face, and 45-70 Bolt Face.  These modules are available separate as extras or replacements.



Part #:  HIMSBF, HIMMBF, HIM4570

Price:  $5.00 each

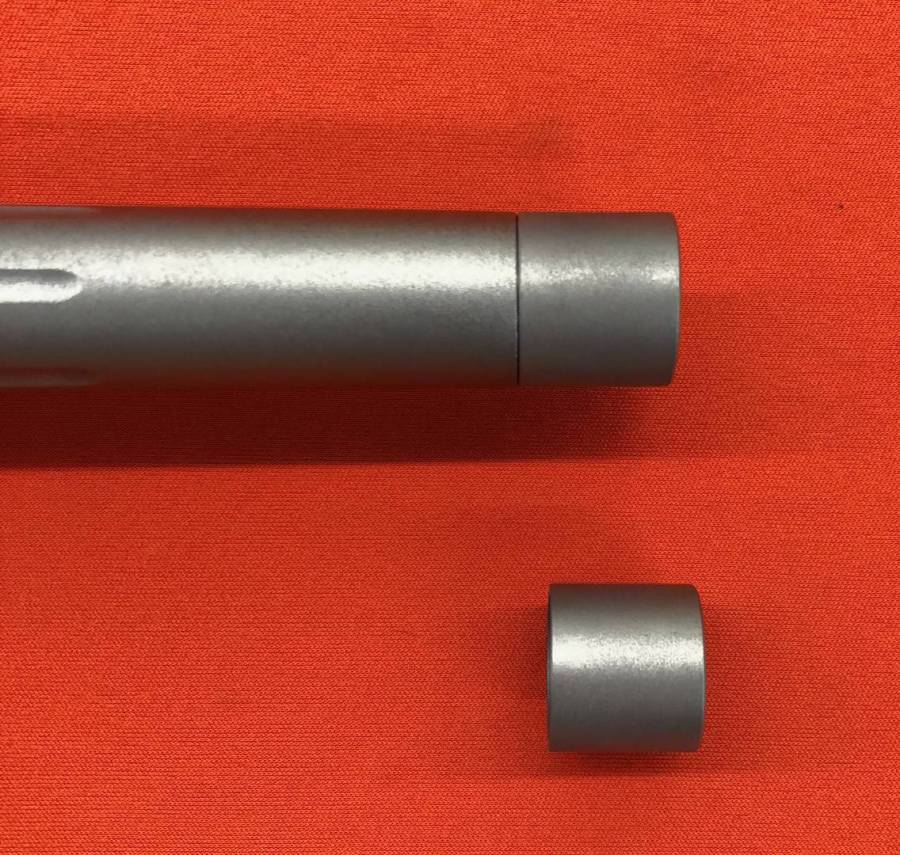

CVA Scout V2 Thread Protector



This is a thread protector for the CVA Scout V2. If you want to remove the break for hunting and not worry about getting your threads buggered up and dirty, you need one of these.  (Picture shows the thread protector both off and on the end of the barrel.)



Size is 18mmX1.0 and is designed to fit the CVA Scout V2 rifles. Might also fit other rifle with a thread pitch of 18mmx1.0



Part # CVASTP

Cost: $15.00
